AmcareMed System Overview

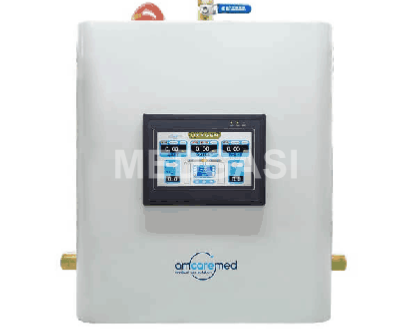

LCD Automatic Manifold

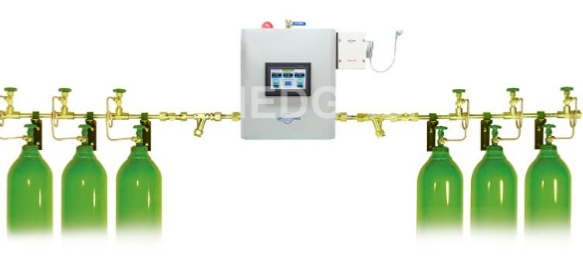

AmcareMed LCD type automatic manifold can fully automatic display information on LCD panel. With digital and gauge pressure indication. Color display for easy reading. Pressure unit provides Bar, Mpa or PSI for measure conversion. When change medical gas cylinder, the manifold have alarm function.

Input Power

Max Flow

Applicable Gas

Dimensions

: 110VAC to 240VAC, 50Hz to 60Hz

: 100 m3/h

: O2, Air, CO2, N2 and N2O, etc

: 480mm x 510mm x 240mm

Technical Data

• Closed metal box, anti-interference
• Pass the pressurization testing, welded in silver, safety and stable
• Adopt pilot differential pressure control, accurate pressure control, and low failure rate
• With temperature control (CO2, N2O) to prevent frost and overheating leakage
• The pipeline adopts loose joint, which makes maintenance more convinient
• Size of connecting hose is customized
• Remote alarm can be connected externally, providing alarm switch signal or analog signal (for central monitoring)

Features

Automatic Control Panel

The control panel can monitor and display the following status information of the manifold

• System running
• System fault
• Outlet pressure and status indication (low, normal, high)
• Left and right inlet pressure and status indication (low, normal, high)
• Usage status and alarm information
• Cylinder status indication
• Parameter seting

AM-200DX

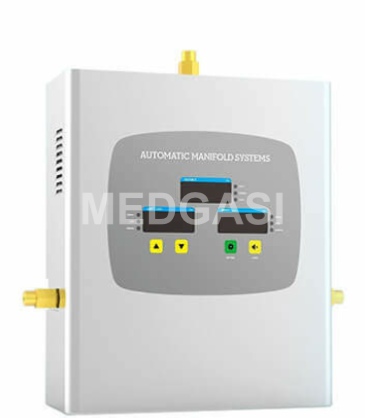

LED Automatic Manifold

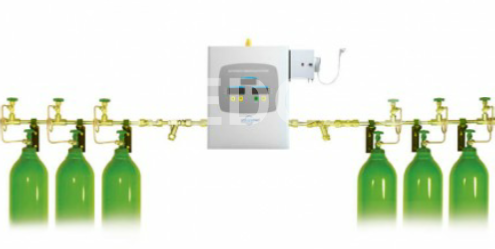

AmcareMed LED type automatic manifold has pressure regulators with LED Display. The automatic manifold monitors cylinder tank pressure electronically, automatically change over to secondary tank when the primary cylinder tank is depleted and eleminates the need to manually set a priority side. It’s economical and efficient for hospital medical gas pipeline system.

Input Power

Max Flow

Applicable Gas

Max. Pressure

Outlet Pressure

Opening Pressure Of safety valve

Dimensions

: 110VAC to 240VAC, 50Hz to 60Hz

: 100 m3/h

: O2, Air, CO2, N2 and N2O, etc

: 20Mpa

: 0.4 ~ 1.0Mpa (adjustable)

: 1.25Mpa

: 600mm x 500mm x 200mm

Technical Data

• Closed metal box, anti-interference
• All-copper integrated structure dual circuit design, stable pressure
• 100% pressure test, safe and reliable
• With alarm system and remote alarming
• Suistainable supply and control circuit when the power failure
• Optional include heaters
• Reliable wall installation or horizontal installation
• Size of connecting hose in customized

Features

AM-100DX

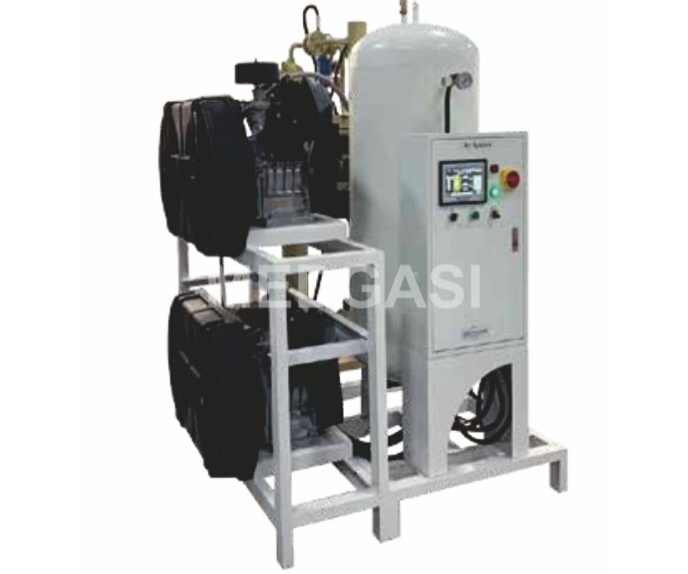

Reciprocating Piston Medical Air

Compressor

• Electrical power rating  : 2.2kW to 11kW
• Dew point temperatur   : -10⁰ C
• Provide 100% oil-free air, any oil does not come into compressing chamber
• PLC controller ensures each compressor running time sequence and turn around working according pressure value

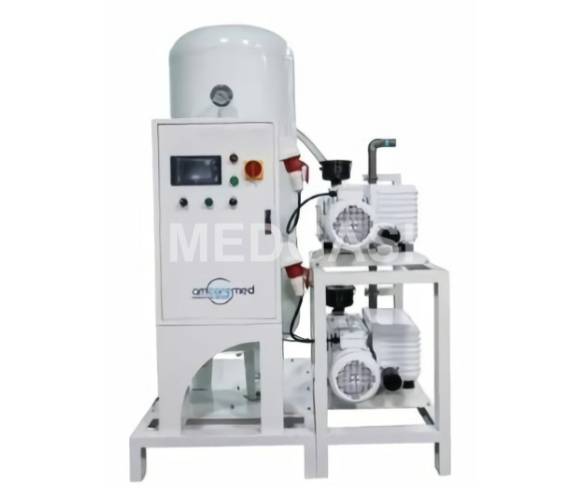

Oil Lubricated Rotary Vane Vacuum System

• Built-in oil mist filter, the air discharged does not contain oil mist
• Strong air extraction, ultimate vacuum degree can reach 0.01Mbar (1Pa)
• The vacuum pump is lubricated with lubricating oil and has a long service life
• Low noise, low vibration, and the working environment will not be affected
• Excellent rust and corrosion resistance, can form an effective anti-corrosion film on the metal surface

Oil-lubricated rotary vane vacuum system is a durable long-life pump that has been used for many years in hospital and laboratory applications. Lubricated by circulating oil provides a consistently high vacuum level in continuous operation.

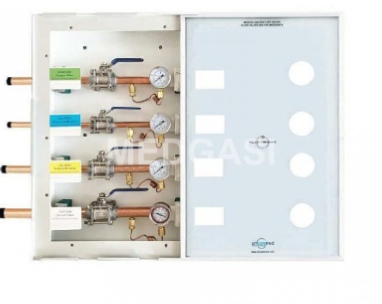

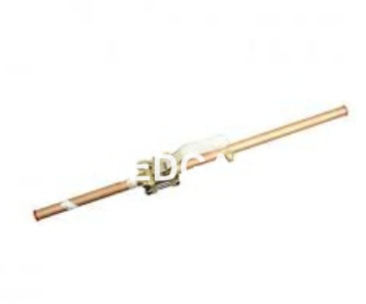

Box Valve / Zona Valve Box (AVSU)

Medical gas zona valve box is suitable for gas shutoff/open control in medical gas pipeline system, used for medical gas copper pipeline system connection.

Amcaremed multiple zone valve box is available in single (house 1 valve) or multiple (house 2 to 6 valves) types, accomodating a variety of valve sizes, In case of emergencies, zona valve boxes can also be used to shutoff of gas distribution to hospilal different individual zones.

All valves are claned for medical gas services and include dua gauge ports on the valve extensions. The valve is using stainless steel material or copper ball valve, 100% gas tightness test.

Technical Data

• Medical gas standard
• Dome loaded regulator
• Removable acrilyc observation window
• Type “K” copper pipe extension that are cleaned for medical gas service shall be fitted into each side of the valve
• The valve is been oxygen cleaned
• Features a pull-out with the ring
• Stainless steel pressure gauge shows gas pressure

Features

Iinstallation type

Gas identification

Applicable Gas

Valve size

: Wall-mounted or embedded in the wall

: NFPA/ISO full color standard

: O2, Air, Vac, CO2, N2, and N2O etc

: 1/2” to 2 1/2”

Ordering Information

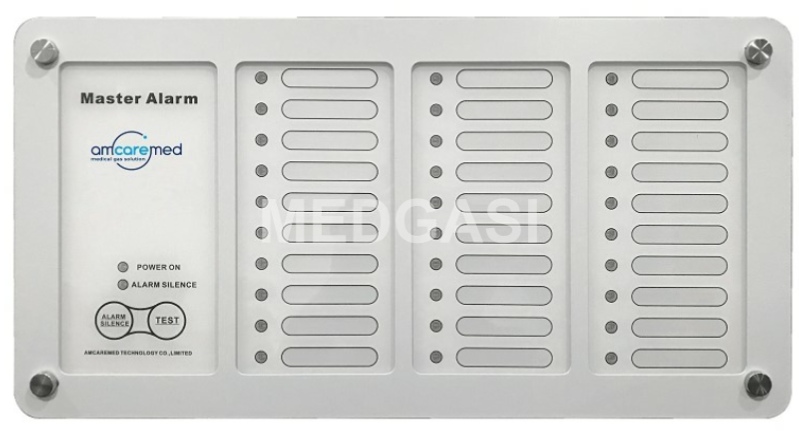

Master Alarm

AmcareMed medical gas master alarm is a profesional accurate design for hospital monitor and managed area alarm. Medical master alarm is equipped with RS-485 communication interface, which can be connected to the area alarm and gas management system to easily control the medical gas in the hospital.

Input Power

Signal points

Dimension

Installation type

: 110VAC to 240VAC, 50Hz to 60Hz

: Up to 80 signal

: 340mm x 230mm x 60mm

: Wall-mounted or embedded in the wall

Technical Data

Features

• Each line shows 10 digital area alarm working state
• LED alarm lights utilized for long life
• Audio and visual alarm indicators
• Data collected up to 1500 meter
• Glass panel, ultra thin and beauty
• 100% tested to ensure accuracy

LED Medical Gas Area Alarm

LED area alarm is suitable for monitoring the gas pressure of the hospital floor, nurse station and other zones.

The alarm displays the pressure in real time through the digital tube. The alarm point can be set according to the requirements of each parameter.

The gas area alarm is equipped with RS-485 communication interface, multiple alarms can be networked to connect to the central monitoring system

Input Power

Pressure range

LED size

Accuracy

Applicable gas

Installation type

: 110VAC to 240VAC, 50Hz to 60Hz

: -0.1Mpa ~ 1.0Mpa

: 0.8inch

: ± 1.5%

: O2, Air, Vac, CO2, N2, and N2O, etc

: Wall-mounted or embedded in the wall

Technical Data

Features

• Stainless steel high-precision pressure sensor
• Glass panel, ultra-thin and beauty
• Sampling points distance up to 1000 meter
• Quick response, automatically enter working state within 5 second after power on
• Provide external remote alarm contact
• With multi-user operation authorization, implement multi-level password management
• 100% tested to ensure accuracy

Dimension

LCD Medical Gas Area Alarm

LCD medical gas alarm will actively display your medical gas information on a highly visible LCD screen. The alarm can monitor system operation on various mobile terminals (phone, iPad, computer, etc.). Also, our medical gas alarm panel provides historical medical gas data, query, and print, for engineer operation support and optimization of the system.

When used in conjunction with our software, the area alarm will have an early warning function, which will provide early warning of impending failures, effectively prevent failures, and provide safety guarantees for the normal operation of medical gas pipeline work

Technical Data

Features

• ISO or US(NFPA) colors code allows for easy gas identification
• Display gas readouts in PSI (in Hg), Bar or kPa, button selected
• Pressure, concentration and flow rate can be monitored
• 100% tested to ensure accuracy
• Medical gas pressure can be adjusted from 1 minute to 999 minutes, or off
• Remote alarm can be connected externally, providing alarm switch signal or analog signal (for central monitoring)

Input Power

Pressure range

Applicable gas

Dimension

: 110VAC to 240VAC, 50Hz to 60Hz

: -0.1Mpa ~ 1.0Mpa

: O2, Air, Vac, CO2, N2, and N2O, etc

: 374mm x 264mm x 44mm

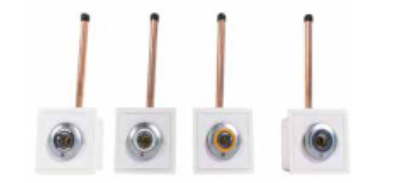

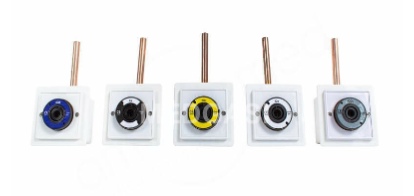

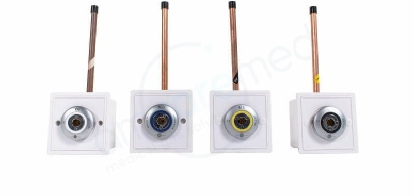

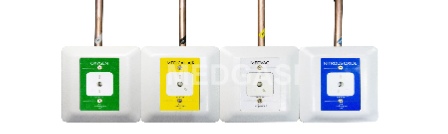

Medical Gas Outlet

• Available in wall type with box, console type on bed head and hose barb type
• Secondary isolating valve enables easy maintenance, without shutting down the pipeline system
• Complies with DIN 13260-2 ISO9170-1 standard
• 100% pressure and leak tested
• Color coded according to ISO32 color

German Standard Gas Outlet

• Available in wall type with box, console type on bed head and hose barb type
• Secondary isolating valve enables easy maintenance, without shutting down the pipeline system
• Complies with BS EN737-1 and HTM-02-01 standard
• 100% pressure and leak tested
• Color coded according to BS EN-737-1 color

British Standard Gas Outlet

• Complies with JIS and CGA standard
• 100% pressure and leak tested
• Availble in wall type with box, console type on bed head unit and hose barb type
• Secondary isolating valve enables easy maintenance, without shutting down the pipeline system
• Color coded according to JIS color standard

Japanese Standard Gas Outlet

• Complies with NFPA 99 and CGA standard
• 100% pressure and leak tested
• Availale in wall type with box, console type on bed head unit and hose barb type
• Universal rough-in common for all outlet
• NFPA full color standard for easy gas identification

Medical Gas Outlet

Ohmeda

DISS

JIS

British

DIN

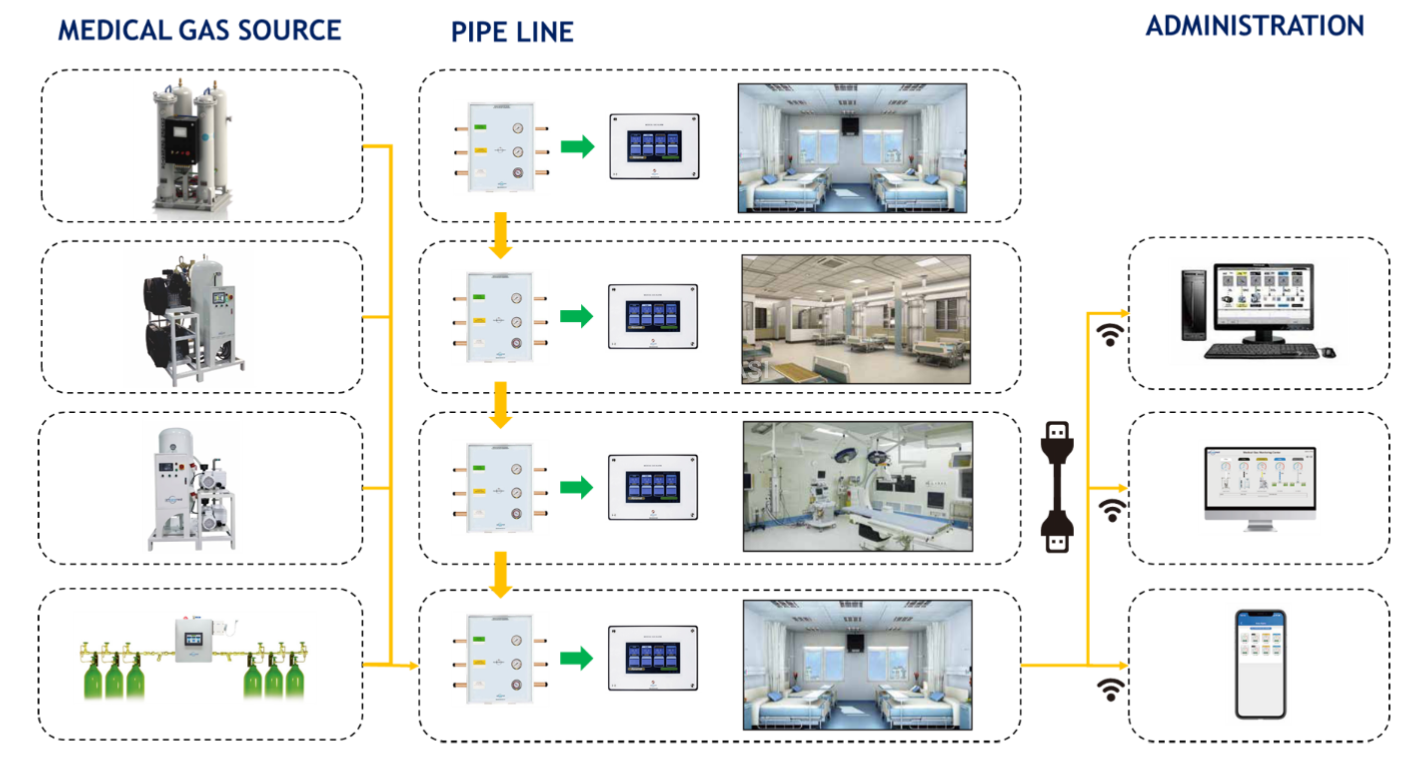

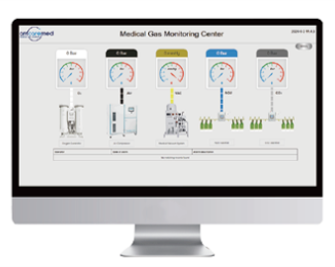

Medical Gas Monitoring System

AmcareMed medical gas monitoring system covers medical oxygen, vacuum, air operation systems, and alarms in nurse stations, operating rooms and other areas. It integrates pressure, temperature, flow and other data, processing and analyzing them in a unified manner.

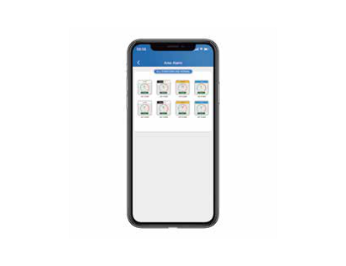

Medical gas equipment is connected to the intelligent cloud platform via the Internet. Users can remotely view monitoring data in real time through the web or APP, and manage the operation of medical gas more effectively and quickly to ensure the safety of patients' gas use.

• Comprehensive monitoring coverage Icluding medical oxygen, medical vacuum, medical air plant and other medical gas alarm systems
• System data integration analysis Itegrate and analyze the pressure, temperatur, flow and other data monitored in each subsystem, provide historical data graph display analysis, and provide a scientific basis for medical gas operation management
• Notify the location of alarm When an abnormal situation occurs, the location of the alarm can be identified through sms or email, and the cause of the alarm can be quickly found to eliminate the fault
• Customizable system upgrade The system meets the continuous development and construction of different medical institutions and continuously refines internal needs to expand and upgrade

Features

Anaesthesia Gas Scavenging System

• Oil Free Design
• Pressure at the terminal connection is under -15KPa
• Factory pre-piped, wired and tested for assured reliability
• All interconnecting pipework is included
• Alarm and BMS outputs for remote status indication
• Duplex systems allow you to run one unit while the other unit is being maintained

The AGSS system shall be a dedicated, specifically designed active extraction and disposal system for waste anaesthetic gas. It’ s an active system which removes anaesthetic gas any other areas fitted with nitrous mixtures from operating rooms and any other areas fitted with nitrous oxide terminal units

PSA Oxygen Generator

• Capacity: 5Nm³/hr to 50 Nm³/hr
• Operating temperature: 5⁰ C - 45⁰ C
• Two pcs molecular sieve beds, ensure uninterrupted operation
• Modular design for easy installation
• Automatic and stable operation
• Easy to Install and Maintain
• Higher separation efficiency

AmcareMed medical oxygen generator system could supply pure oxygen for all kinds of hospitals and clinics continuously. Medical oxygen generators system use Pressure Swing Adsorption (PSA) technology to separate the oxygen from air. Our oxygen plant equipment put the air as raw material, zeolite molecular sieve as adsorbent, under the normal temperature low pressure, using the selectivity of zeolite molecular sieve for oxygen adsorption. The purity is 93%±3%.
